proxmox접속
LXC 이미지 다운로드 및 생성
pveam download local centos-9-stream-default_20221109_amd64.tar.xzpct create 999 local:vztmpl/centos-9-stream-default_20221109_amd64.tar.xz \
--description ct999 --hostname ct999 --memory 512 --rootfs local-lvm:8 \
--cores 1 --net0 name=eth0,bridge=vmbr0,ip=dhcp --unprivileged 1 \
--password 12345 --features nesting=1
LXC접속 tailscale설치
[root@ct999 ~]# yum install epel-release
[root@ct999 ~]# dnf config-manager --add-repo https://pkgs.tailscale.com/stable/centos/9/tailscale.repo
[root@ct999 ~]# sudo dnf install tailscale
Tailscale stable 565 B/s | 832 B 00:01
Tailscale stable 4.7 kB/s | 3.1 kB 00:00
Importing GPG key 0x957F5868:
Userid : "Tailscale Inc. (Package repository signing key) <info@tailscale.com>"
Fingerprint: 2596 A99E AAB3 3821 893C 0A79 458C A832 957F 5868
From : https://pkgs.tailscale.com/stable/centos/9/repo.gpg
Is this ok [y/N]: y
Tailscale stable 5.7 kB/s | 14 kB 00:02
Last metadata expiration check: 0:00:01 ago on Mon 22 Apr 2024 06:56:44 AM UTC.
Dependencies resolved.
========================================================================================================================================================================
Package Architecture Version Repository Size
========================================================================================================================================================================
Installing:
tailscale x86_64 1.64.0-1 tailscale-stable 27 M
Installing dependencies:
iptables-legacy x86_64 1.8.10-2.2.el9.next epel-next 49 k
iptables-legacy-libs x86_64 1.8.10-2.2.el9.next epel-next 37 k
iptables-libs x86_64 1.8.10-2.el9 baseos 461 k
libnetfilter_conntrack x86_64 1.0.9-1.el9 baseos 59 k
libnfnetlink x86_64 1.0.1-21.el9 baseos 30 k
Transaction Summary
========================================================================================================================================================================
Install 6 Packages
Total download size: 27 M
Installed size: 50 M
Is this ok [y/N]: y
Downloading Packages:
(1/6): libnfnetlink-1.0.1-21.el9.x86_64.rpm 142 kB/s | 30 kB 00:00
(2/6): libnetfilter_conntrack-1.0.9-1.el9.x86_64.rpm 250 kB/s | 59 kB 00:00
(3/6): iptables-legacy-1.8.10-2.2.el9.next.x86_64.rpm 234 kB/s | 49 kB 00:00
(4/6): iptables-libs-1.8.10-2.el9.x86_64.rpm 1.0 MB/s | 461 kB 00:00
(5/6): iptables-legacy-libs-1.8.10-2.2.el9.next.x86_64.rpm 159 kB/s | 37 kB 00:00
(6/6): tailscale_1.64.0_x86_64.rpm 6.3 MB/s | 27 MB 00:04
------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Total 4.4 MB/s | 27 MB 00:06
Extra Packages for Enterprise Linux 9 - Next - x86_64 210 kB/s | 1.6 kB 00:00
Importing GPG key 0x3228467C:
Userid : "Fedora (epel9) <epel@fedoraproject.org>"
Fingerprint: FF8A D134 4597 106E CE81 3B91 8A38 72BF 3228 467C
From : /etc/pki/rpm-gpg/RPM-GPG-KEY-EPEL-9
Is this ok [y/N]: y
Key imported successfully
Tailscale stable 5.3 kB/s | 3.1 kB 00:00
Importing GPG key 0x957F5868:
Userid : "Tailscale Inc. (Package repository signing key) <info@tailscale.com>"
Fingerprint: 2596 A99E AAB3 3821 893C 0A79 458C A832 957F 5868
From : https://pkgs.tailscale.com/stable/centos/9/repo.gpg
Is this ok [y/N]: y
Key imported successfully
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transaction
Preparing : 1/1
Installing : iptables-legacy-libs-1.8.10-2.2.el9.next.x86_64 1/6
Installing : libnfnetlink-1.0.1-21.el9.x86_64 2/6
Installing : libnetfilter_conntrack-1.0.9-1.el9.x86_64 3/6
Installing : iptables-libs-1.8.10-2.el9.x86_64 4/6
Installing : iptables-legacy-1.8.10-2.2.el9.next.x86_64 5/6
Running scriptlet: iptables-legacy-1.8.10-2.2.el9.next.x86_64 5/6
Installing : tailscale-1.64.0-1.x86_64 6/6
Running scriptlet: tailscale-1.64.0-1.x86_64 6/6
Verifying : iptables-libs-1.8.10-2.el9.x86_64 1/6
Verifying : libnetfilter_conntrack-1.0.9-1.el9.x86_64 2/6
Verifying : libnfnetlink-1.0.1-21.el9.x86_64 3/6
Verifying : iptables-legacy-1.8.10-2.2.el9.next.x86_64 4/6
Verifying : iptables-legacy-libs-1.8.10-2.2.el9.next.x86_64 5/6
Verifying : tailscale-1.64.0-1.x86_64 6/6
Installed:
iptables-legacy-1.8.10-2.2.el9.next.x86_64 iptables-legacy-libs-1.8.10-2.2.el9.next.x86_64 iptables-libs-1.8.10-2.el9.x86_64
libnetfilter_conntrack-1.0.9-1.el9.x86_64 libnfnetlink-1.0.1-21.el9.x86_64 tailscale-1.64.0-1.x86_64
Complete!
[root@ct999 ~]# sudo systemctl enable --now tailscaled
Created symlink /etc/systemd/system/multi-user.target.wants/tailscaled.service → /usr/lib/systemd/system/tailscaled.service.
[root@ct999 ~]# sudo tailscale up

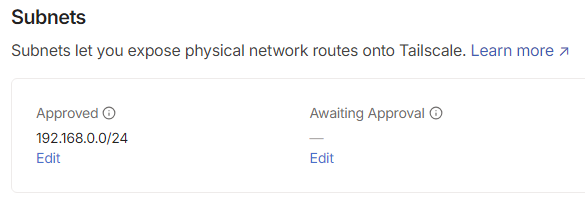

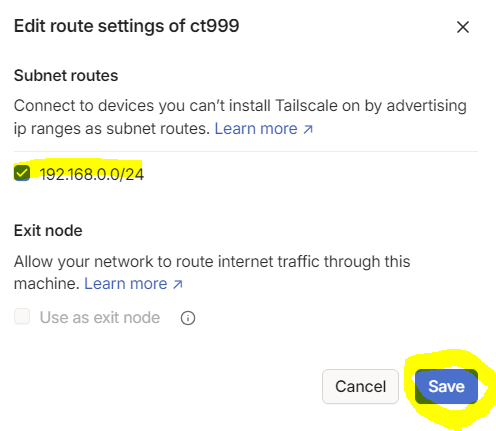

[root@ct999 ~]# sudo tailscale up --advertise-routes=192.168.0.0/24
실행오류
[root@ct999 ~]# cat /etc/redhat-release
CentOS Stream release 9[root@ct999 ~]# tailscale version
1.64.0
tailscale commit: 7e9bebdb2470dfbb6e08a3f12a289a7d88128dfb
other commit: f314c5be5350431460b89f703275de6b89a30460
go version: go1.22.2[root@ct999 ~]# systemctl status tailscaled
× tailscaled.service - Tailscale node agent
Loaded: loaded (/usr/lib/systemd/system/tailscaled.service; enabled; preset: disabled)
Active: failed (Result: exit-code) since Mon 2024-04-22 06:57:24 UTC; 10min ago
Duration: 635ms
Docs: https://tailscale.com/kb/
Main PID: 658 (code=exited, status=1/FAILURE)
CPU: 161ms
Apr 22 06:57:24 ct999 systemd[1]: tailscaled.service: Failed with result 'exit-code'.
Apr 22 06:57:24 ct999 systemd[1]: tailscaled.service: Scheduled restart job, restart counter is at 5.
Apr 22 06:57:24 ct999 systemd[1]: Stopped Tailscale node agent.
Apr 22 06:57:24 ct999 systemd[1]: tailscaled.service: Start request repeated too quickly.
Apr 22 06:57:24 ct999 systemd[1]: tailscaled.service: Failed with result 'exit-code'.
Apr 22 06:57:24 ct999 systemd[1]: Failed to start Tailscale node agent.
[root@ct999 ~]# echo 'net.ipv4.ip_forward = 1' | sudo tee -a /etc/sysctl.d/99-tailscale.conf
net.ipv4.ip_forward = 1
[root@ct999 ~]# echo 'net.ipv6.conf.all.forwarding = 1' | sudo tee -a /etc/sysctl.d/99-tailscale.conf
net.ipv6.conf.all.forwarding = 1
[root@ct999 ~]# sudo sysctl -p /etc/sysctl.d/99-tailscale.conf
net.ipv4.ip_forward = 1
net.ipv6.conf.all.forwarding = 1
트러블슈팅
root@pve:~# vi /etc/pve/lxc/999.conf
## 아래내용 추가 ##
lxc.cgroup2.devices.allow: c 10:200 rwm
lxc.mount.entry: /dev/net dev/net none bind,create=dir
