kibana 8.2.3 install





다운로드

https://www.elastic.co/kr/downloads/kibana

Download Kibana Free | Get Started Now





kibana 레포지토리 추가

[darksharavim.tistory.com]vi /etc/yum.repos.d/kibana.repo
# 아래내용 추가
[kibana-8.x]
name=Kibana repository for 8.x packages
baseurl=https://artifacts.elastic.co/packages/8.x/yum
gpgcheck=1
gpgkey=https://artifacts.elastic.co/GPG-KEY-elasticsearch
enabled=1
autorefresh=1
type=rpm-md





kibana 설치

	[darksharavim.tistory.com]yum -y install kibana
Rocky Linux 8 - AppStream                                                                                                                                                                                   2.7 MB/s | 8.4 MB     00:03
Rocky Linux 8 - BaseOS                                                                                                                                                                                      1.3 MB/s | 2.6 MB     00:02
Rocky Linux 8 - Extras                                                                                                                                                                                       12 kB/s |  11 kB     00:00
Extra Packages for Enterprise Linux 8 - x86_64                                                                                                                                                              1.7 MB/s |  11 MB     00:06
Extra Packages for Enterprise Linux Modular 8 - x86_64                                                                                                                                                      9.4 kB/s | 1.0 MB     01:51
Kibana repository for 8.x packages                                                                                                                                                                          8.0 MB/s | 9.9 MB     00:01
Elastic repository for 8.x packages                                                                                                                                                                         9.7 MB/s | 9.9 MB     00:01
종속성이 해결되었습니다.
============================================================================================================================================================================================================================================
 꾸러미                                                  구조                                                    버전                                                     레포지터리                                                   크기
============================================================================================================================================================================================================================================
설치 중:
 kibana                                                  x86_64                                                  8.2.3-1                                                  kibana-8.x                                                  248 M

연결 요약
============================================================================================================================================================================================================================================
설치  1 꾸러미

총계 내려받기 크기: 248 M
설치된 크기 : 603 M
꾸러미 내려받기 중:
kibana-8.2.3-x86_64.rpm                                                                                                                                                                                      11 MB/s | 248 MB     00:23
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
합계                                                                                                                                                                                                         11 MB/s | 248 MB     00:23
연결 확인 실행 중
연결 확인에 성공했습니다.
연결 시험 실행 중
연결 시험에 성공했습니다.
연결 실행 중
  준비 중           :                                                                                                                                                                                                                   1/1
  스크립트릿 실행 중: kibana-8.2.3-1.x86_64                                                                                                                                                                                             1/1
  설치 중           : kibana-8.2.3-1.x86_64                                                                                                                                                                                             1/1
  스크립트릿 실행 중: kibana-8.2.3-1.x86_64                                                                                                                                                                                             1/1
Creating kibana group... OK
Creating kibana user... OK

Created Kibana keystore in /etc/kibana/kibana.keystore

[/usr/lib/tmpfiles.d/elasticsearch.conf:1] Line references path below legacy directory /var/run/, updating /var/run/elasticsearch → /run/elasticsearch; please update the tmpfiles.d/ drop-in file accordingly.

  확인 중           : kibana-8.2.3-1.x86_64                                                                                                                                                                                             1/1

설치되었습니다:
  kibana-8.2.3-1.x86_64

완료되었습니다!
[darksharavim.tistory.com]



kibana설정

[darksharavim.tistory.com]cat kibana.yml | grep -v '#'
# kibana default port는 5601
server.port: 5601

# 모든IP에서 접근할려면 기존 localhost에서 0.0.0.0으로 변경하면됨.
server.host: "0.0.0.0"

# 엘라스틱호스트 설정
elasticsearch.hosts: ["http://localhost:9200"]



kibana 구동 및 확인

[darksharavim.tistory.com]systemctl start kibana
[darksharavim.tistory.com]systemctl status kibana
● kibana.service - Kibana
   Loaded: loaded (/usr/lib/systemd/system/kibana.service; disabled; vendor preset: disabled)
   Active: active (running) since Fri 2022-06-17 13:55:34 KST; 4s ago
     Docs: https://www.elastic.co
 Main PID: 9273 (node)
    Tasks: 11 (limit: 100878)
   Memory: 183.5M
   CGroup: /system.slice/kibana.service
           └─9273 /usr/share/kibana/bin/../node/bin/node /usr/share/kibana/bin/../src/cli/dist

 6월 17 13:55:34 localhost.localdomain systemd[1]: Started Kibana.
[darksharavim.tistory.com]

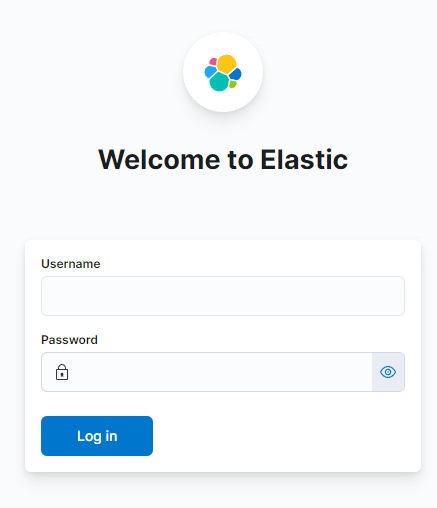

kibana 웹접속

http://[KIBANA IP]:/5601





enrollment token입력

[darksharavim.tistory.com]/usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s kibana
eyJ2ZXIiOiI4LjIuMyIsImFkciI6WyIxOTIuMTY4LjMzLjEzMDo5MjAwIl0sImZnciI6IjcwZDlhYmUxNWE0ZjM2NTVjNjJlNjQ1Mjc5MDY2ZTllZjIxYzM1Njc2OWUwNjZjMmJkNjAwMzY2OTk4NGVlZjkiLCJrZXkiOiJwUUZZY0lFQlhIdUFJT3JzWjJOcTpHdDkzbmpEU1NpeW1lZWZFYTdyT19BIn0=

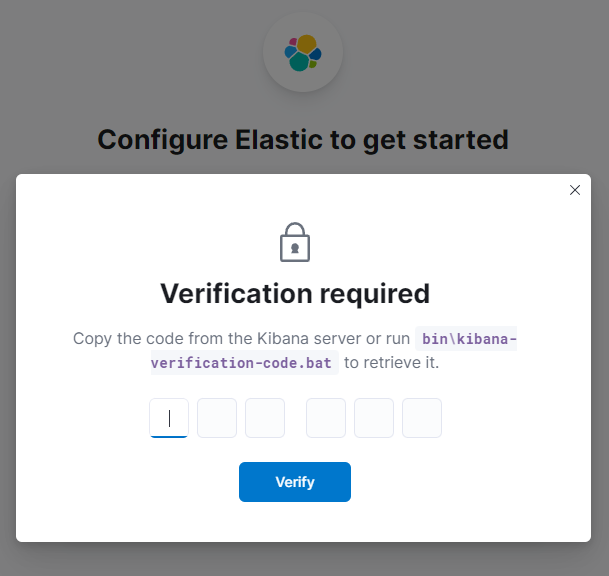

6자리 인증키 확인방법

[darksharavim.tistory.com]systemctl status kibana
● kibana.service - Kibana
   Loaded: loaded (/usr/lib/systemd/system/kibana.service; disabled; vendor preset: disabled)
   Active: active (running) since Fri 2022-06-17 15:26:45 KST; 4min 19s ago
     Docs: https://www.elastic.co
 Main PID: 28344 (node)
    Tasks: 11 (limit: 100878)
   Memory: 231.2M
   CGroup: /system.slice/kibana.service
           └─28344 /usr/share/kibana/bin/../node/bin/node /usr/share/kibana/bin/../src/cli/dist

 6월 17 15:26:45 localhost.localdomain systemd[1]: Started Kibana.
 6월 17 15:26:55 localhost.localdomain kibana[28344]: [2022-06-17T15:26:55.559+09:00][INFO ][plugins-service] Plugi>
 6월 17 15:26:55 localhost.localdomain kibana[28344]: [2022-06-17T15:26:55.570+09:00][INFO ][plugins-service] Plugi>
 6월 17 15:26:55 localhost.localdomain kibana[28344]: [2022-06-17T15:26:55.632+09:00][INFO ][http.server.Preboot] h>
 6월 17 15:26:55 localhost.localdomain kibana[28344]: [2022-06-17T15:26:55.664+09:00][INFO ][plugins-system.preboot>
 6월 17 15:26:55 localhost.localdomain kibana[28344]: [2022-06-17T15:26:55.665+09:00][INFO ][preboot] "interactiveS>
 6월 17 15:26:55 localhost.localdomain kibana[28344]: [2022-06-17T15:26:55.691+09:00][INFO ][root] Holding setup un>
 6월 17 15:26:55 localhost.localdomain kibana[28344]: i Kibana has not been configured.
 6월 17 15:26:55 localhost.localdomain kibana[28344]: Go to http://0.0.0.0:5601/?code=888748 to get started.

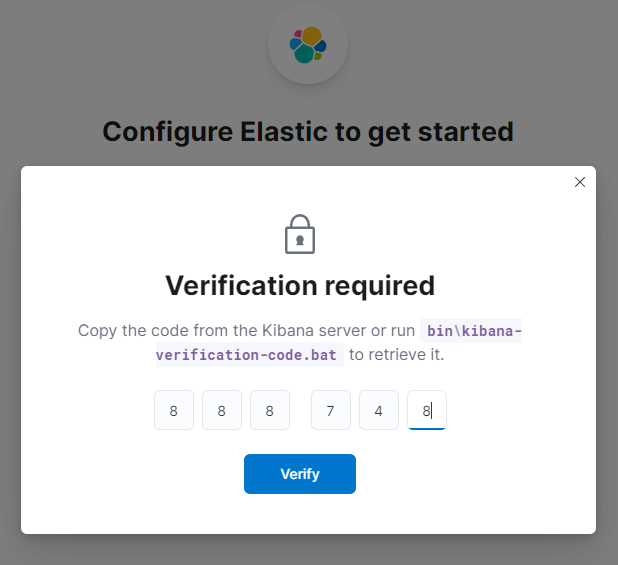

 6월 17 15:29:28 localhost.localdomain kibana[28344]: Your verification code is:  888 748

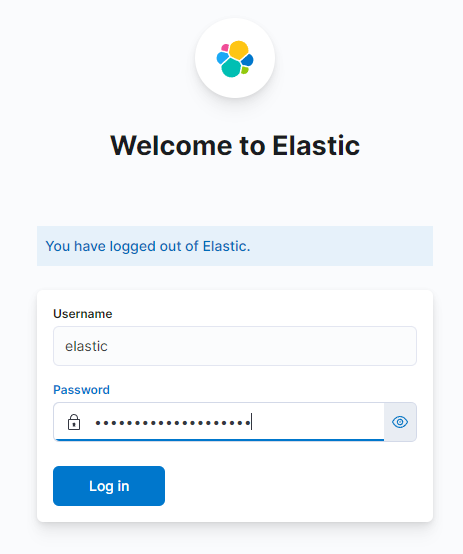

초기 슈퍼관리자(elastic)정보를 입력합니다.
